How to Measure Reclaimed Roof Tiles

This measuring guide supports our reclaimed roof tile matching service . If you need help locating and matching reclaimed roof tiles for a repair, follow the steps below and submit your photos and measurements when ready.

This guide is part of our reclaimed tile matching service by Northern Roof Tiles, established in 1991.

📸 Step 1 — Photos

Take clear photos of the front, back, and a side/profile showing the tile’s shape.

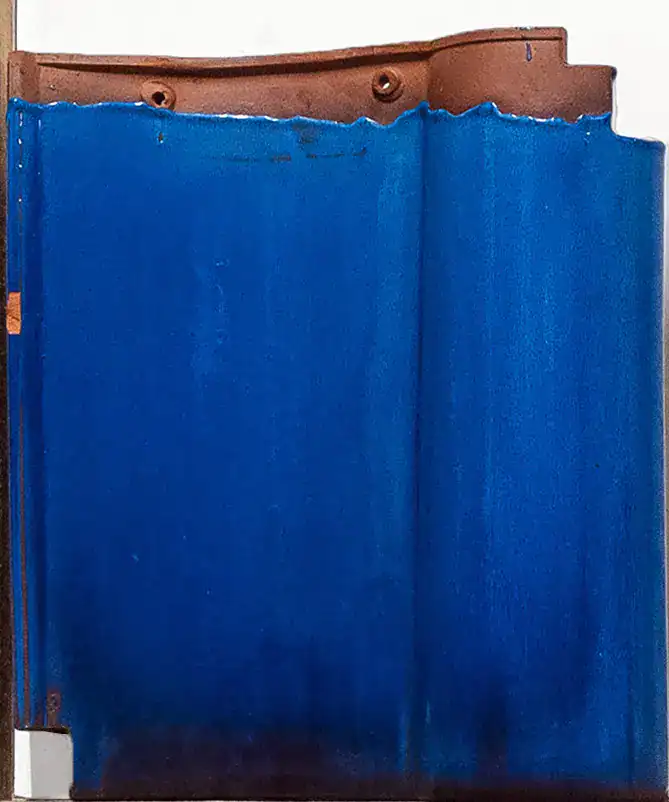

Front of tile
Front view (good light, straight on)

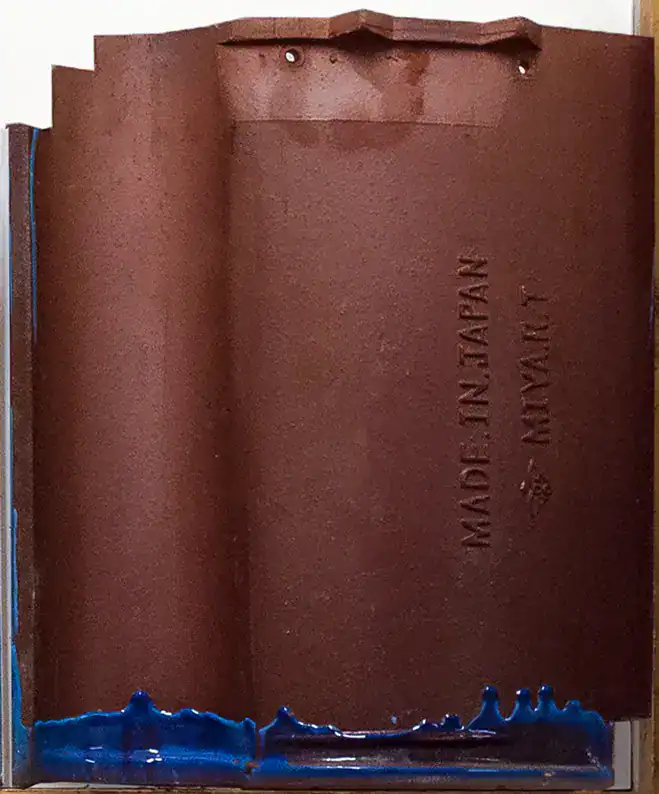

Back of tile
Back view (show any markings or nibs)

📏 Step 2 — Length & Width

Measure the overall length and overall width with a tape measure placed flat on the tile.

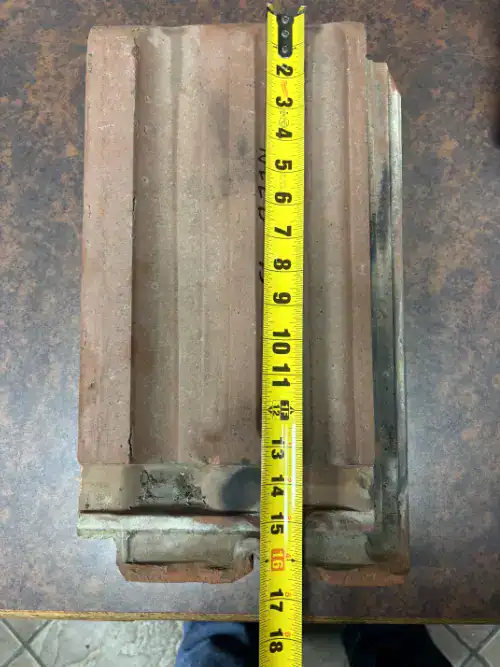

Measure overall length and width
Overall length (L) and overall width (W)
Tip: Measure twice to confirm; record in inches or millimeters.

📐 Step 3 — Thickness & Profile

If possible, note the thickness at the edge and capture a side profile photo to show any curve, nibs, or interlocks.

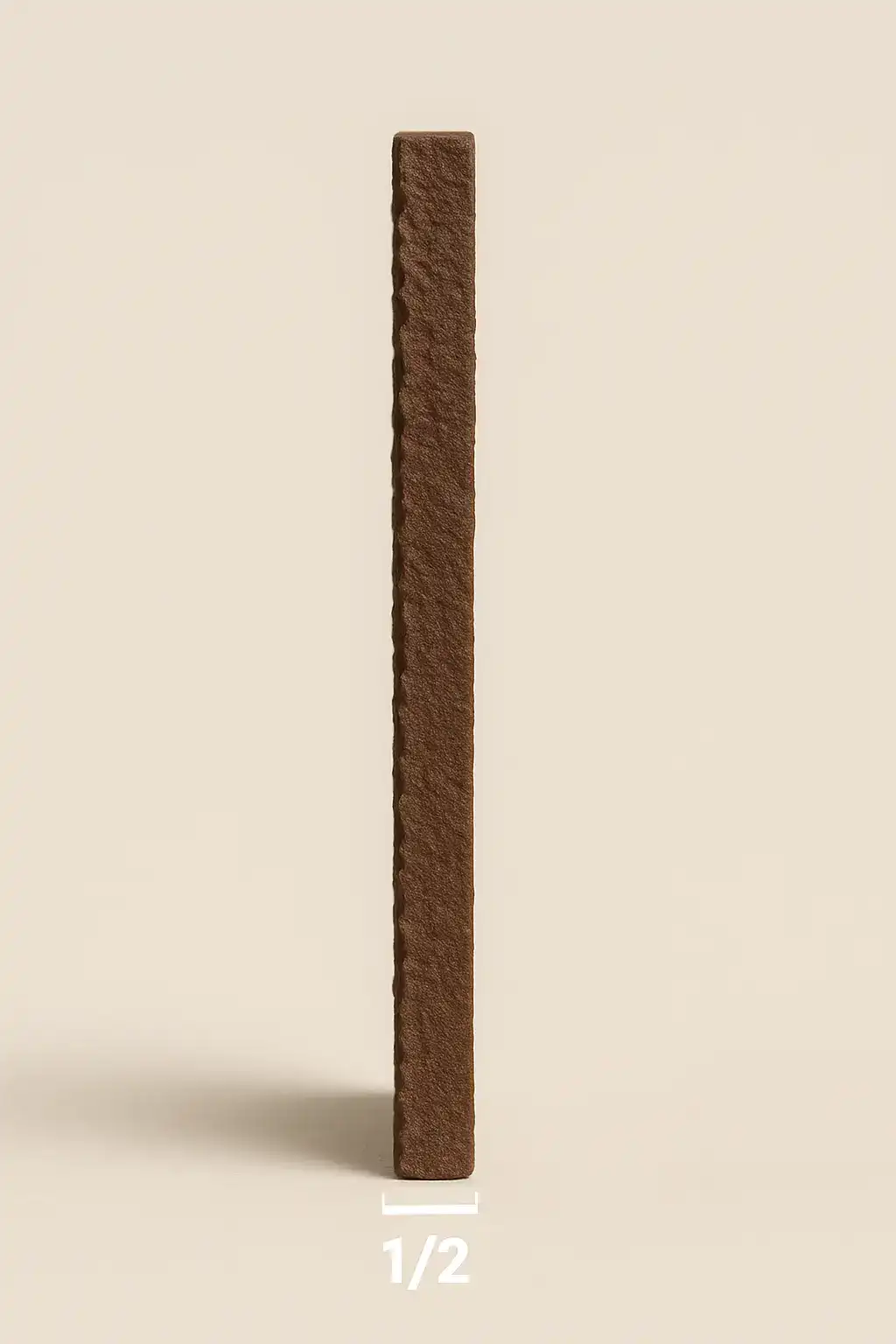

Thickness / side profile of tile
Edge thickness and side/profile detail
Good to have: Any markings on the back (maker’s stamp, numbers).

🎯 Step 4 — Exposure (Optional)

If known, include your roof’s exposure/cover (the visible height per course). Not required, but helpful for perfect matches.

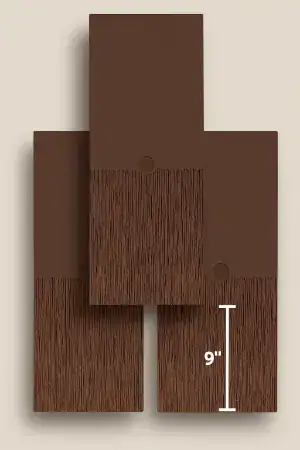

Exposure / cover example
Visible height per course (exposure)

📦 Step 5 — Quantity & Shipping

Approximate quantity needed and your City, State, ZIP help us quote availability and freight.

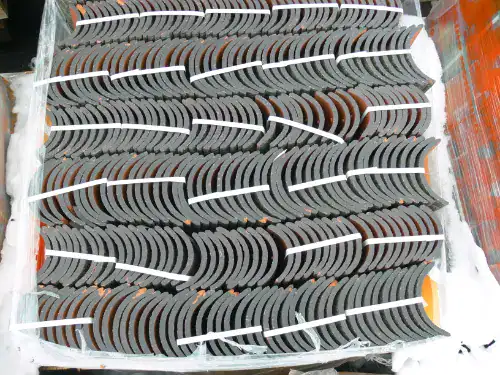

Pallet of reclaimed roof tiles
Example of reclaimed tiles prepared for shipping
Example: “125 tiles • Boston, MA 02108”

🧱 Step 6 — Fittings (If Applicable)

If you need ridges, hips, eaves, end caps, or specials, include photos and rough counts.

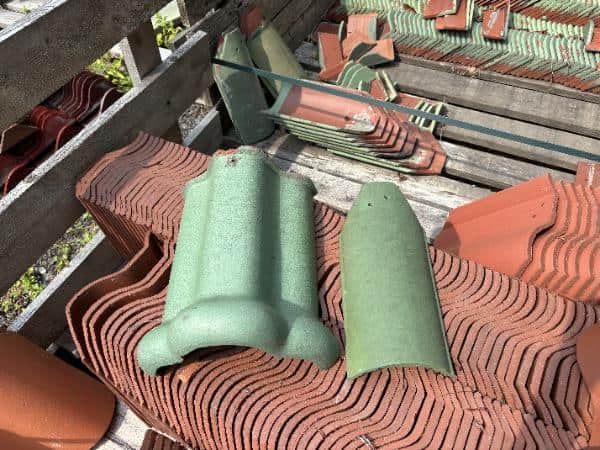

Clay tile fittings such as ridges, hips, eaves
Fittings and specials — photos + measurements
📤 Send Photos & Measurements →

Prefer email? info@northernrooftiles.com

Examples

A few sample submissions and photos from our yard that led to successful matches.

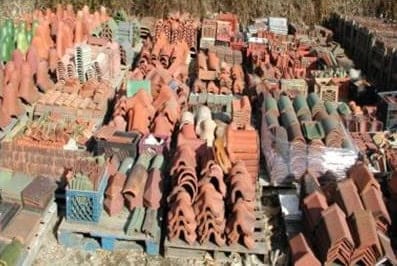

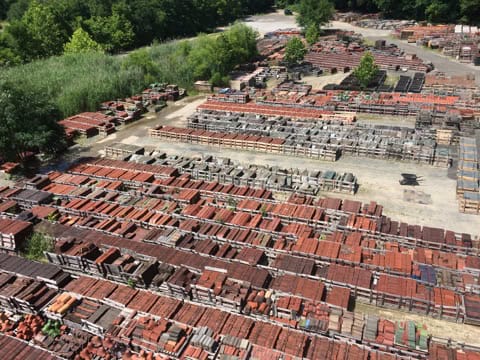

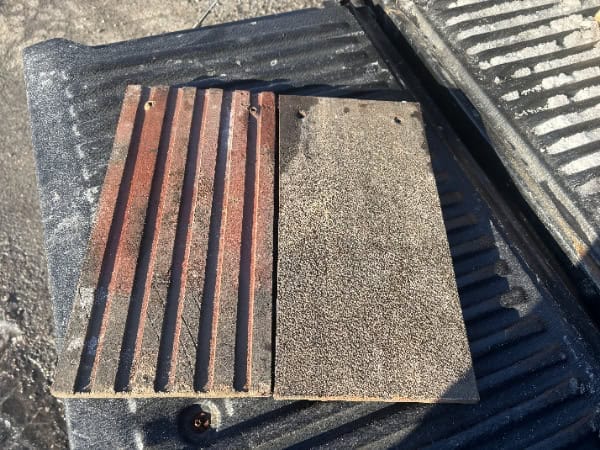

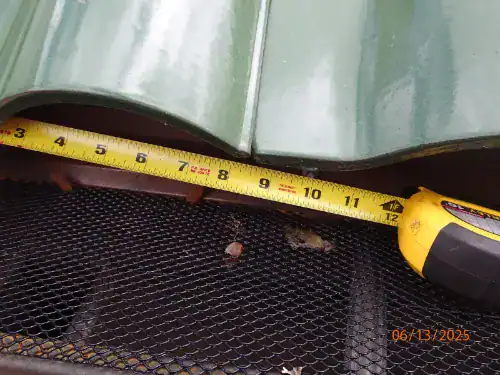

Example match 1 Example match 2 Example match 3 Reclaimed tile yard view 1 Reclaimed tile yard view 2
No perfect measurements? No problem. Clear photos + your best estimates are enough for us to start. We’ll follow up with any specifics we need.

Measuring Tiles for Fireplace Use

Reclaimed clay roof tiles make stunning firebacks and fireplace accents. Before choosing your tiles, measure your fireplace opening carefully so we can help select pieces that fit perfectly and safely.

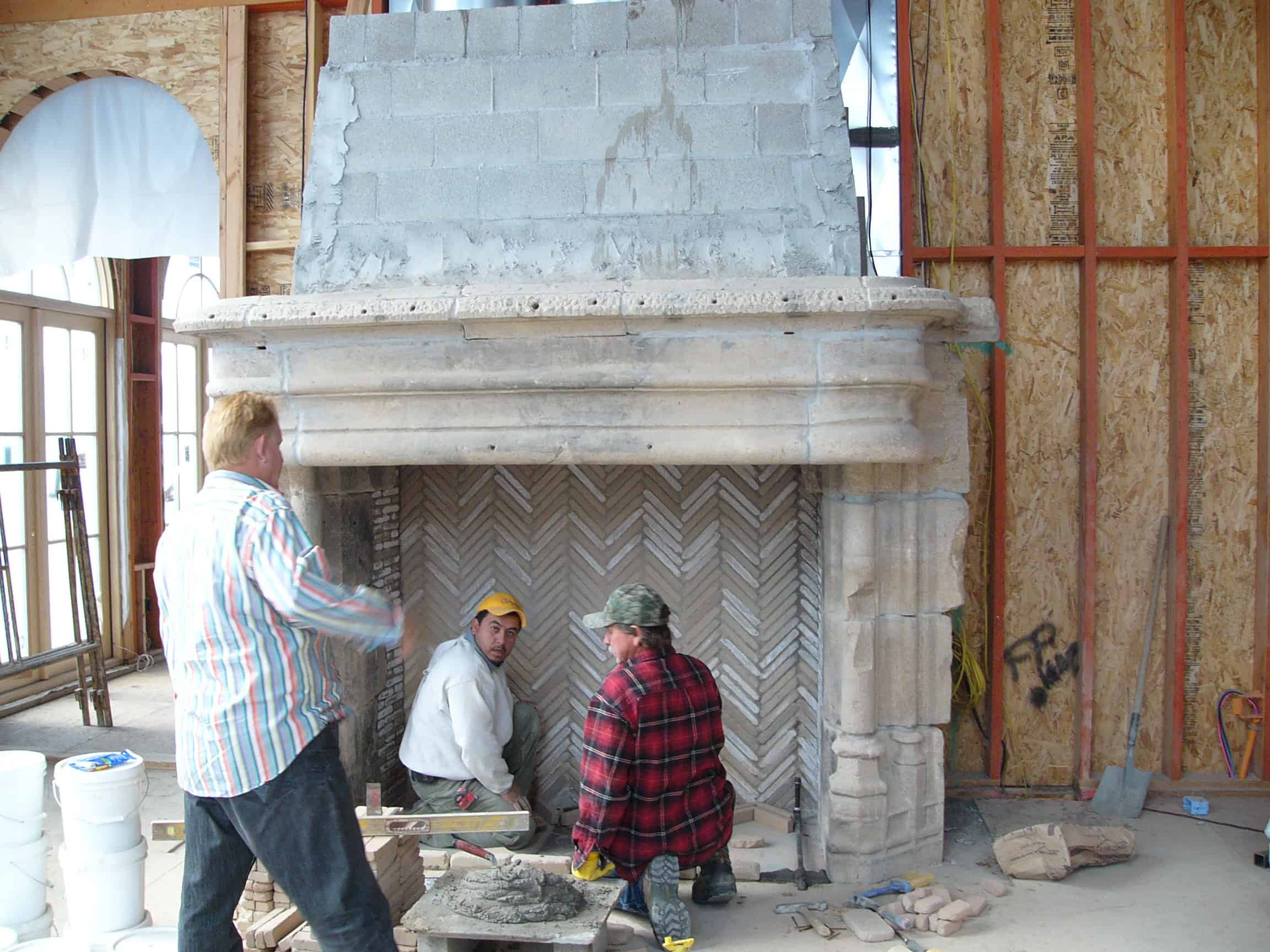

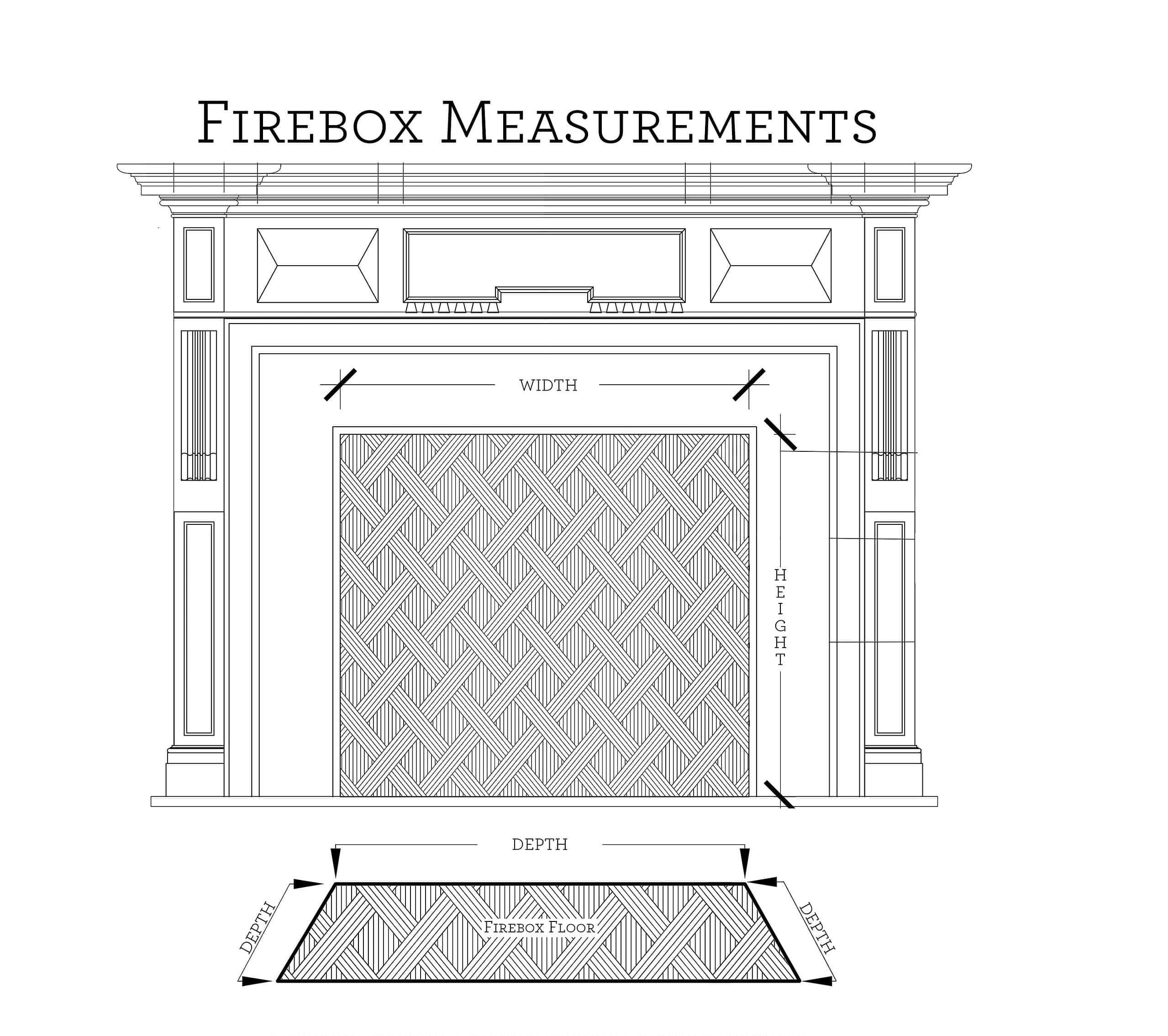

Measuring width, height, and depth of fireplace for clay tile fireback Fireplace installation in progress using reclaimed clay tiles
  • 📏 Width: Measure the full inside width of the fireplace opening.
  • 📐 Height: Measure from the hearth floor to the top of the firebox opening.
  • 📦 Depth: Measure the firebox floor from the front edge to the back wall.
  • 🔥 Optional: Include a photo of your fireplace front-on and one angled view for context.

Once we have your measurements and photos, we’ll help you choose reclaimed tiles that fit your space beautifully.

Still unsure? Visit our FAQ or contact Adam directly.
